Wedge Windows


Sapphire Windows,CaF2 Wedge Windows,Fused Silica Optical Windows

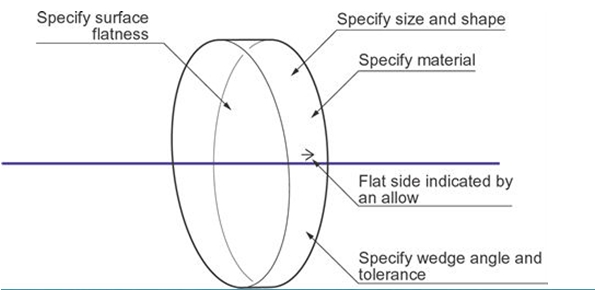

Optical wedge (Wedge window) is a wedge shaped piece of glass which refracts light rays, thus establishing a critical angle. By selecting the appropriate wedge it is simple  to create a precise beam deviation without affecting other beam parameters.





Technical parameters:



1

Material

BK7 Grade A optical glass, UVF3,CaF2,BaF2, Sapphire

2

wedge

+/-3'

3:

Dimension Tolerance

+0.000/ -0.1mm

4

Thickness Tolerance

±0.05mm

5

Surface Flatness

λ/10 at 632.8 nm

6

Surface Quality

20/10 scratch and dig

7

Clear Aperture:

>90%

8

Bevel

0.2 mm to 0.5 mm x 45deg

9

Coating

Customer requirement
